CSK6200 series

Product ID:2023052501

Brand Name:WOK

Material:GCr15

Place of Origin:China Jiangsu

Precision Rating:P6

Minimum order quantity:≥10

application area:textile machinery;washing machines;scooters;printing machines;electric toys;Food Machinery

Online ordering

E-mail:wokclutch@aliyun.com

product details

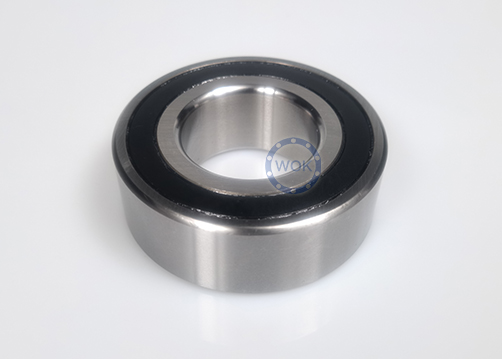

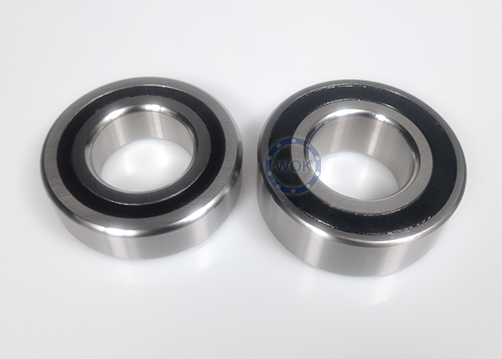

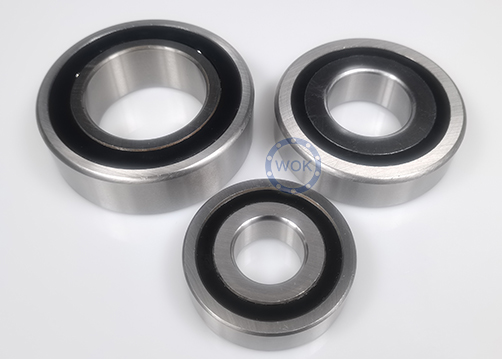

Type CSK6200 series

1.Type CSK is a sprag type freewheel,also named BB、KK、OW etc.,it intergrated into 62 series ball bearing (except size 8 and 40).It is bearing supported, delivered grease lubricated and protected against dust of more than 0.3mm.The use of additional“nylos”type seals is recommended especially when the woking temperature exceeds 50℃.

2.Oil bath lubrication is also possible if the original grease is first flushed out using s suitable solvent.

3.Torque transmission is ensured by a press fit assembly into a rigid outer housing with N6 tolerance. and onto a shaft with n6 tolerance. The initial bearing radial clearance is set at C5,and is reduced if using the press fit as specified.

4.The sealing in the both side of inner race or outer race is assembled into the inner race by a taper. So it improved the hermetic sealing and fastness, togther raised the work efficiency.

5.If not fit assembly, giving a CSK…PP series C3 bearing clearance will be necessary.

6.CSK-2RS is 5mm wider but is equipped with lip seals to be water a splash resistant.

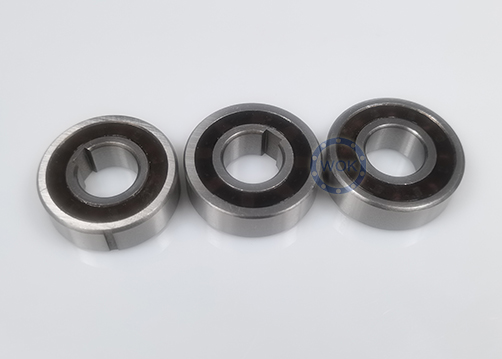

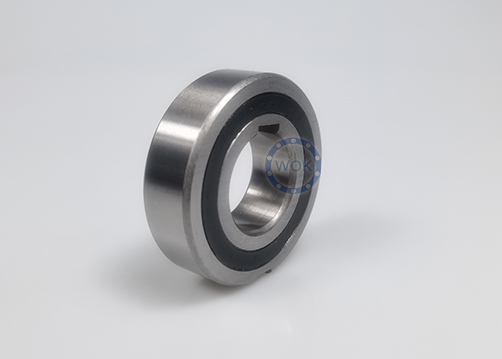

7.CSK..P is a sprag type freewheel integrated into 62 series ball bearing (except size 40).In addition to the basic WOK model, type WOK..P features a keyway on the inner race. For this reason it can be keyed to a shaft to K6 tolerance. The outer race must still be pressed into a rigid housing to N6 tolerance.

8.CSK..PP series features a keyway on both the inner and outer race .The recommended mounting tolerance are K6 on the shaft and K6 in a rigid housing .A H6 tolerance on the shaft or H6 in the housing are also acceptable for a slight fit assembly.

9.Operating temperature range;-40℃ to+100℃.peaks up to+120℃ are acceptable for short periods.
