AV series

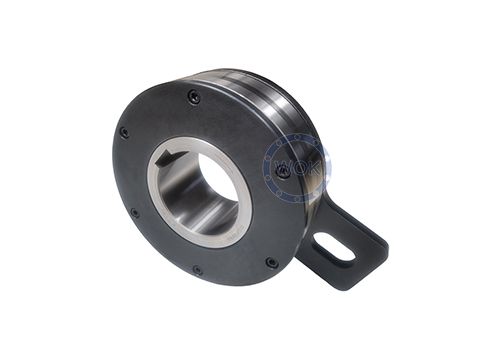

    Type AV is a roller type freewheel. It is self-contained,centered by plain bearings for low rotational speeds, and sealed using shield protected metallic labyrinth seals

    Unit is delivered grease lubricated, ready to install in a horizontal or vertical position. Primarily used as a backstop, the torque capacity is high for a minimum

    space requirement. This design is suitable for use in difficult environments. A bolt, secured to a fixed part of the machine and passing through the slot in the torque arm, provides the rotational stop. Radial clearance on this bolt should be equal to 1–3 % of the slot width.

    The torque arm and the bearings must not be prestressed. The roller design makes the AV type ideal for light indexing applications.
