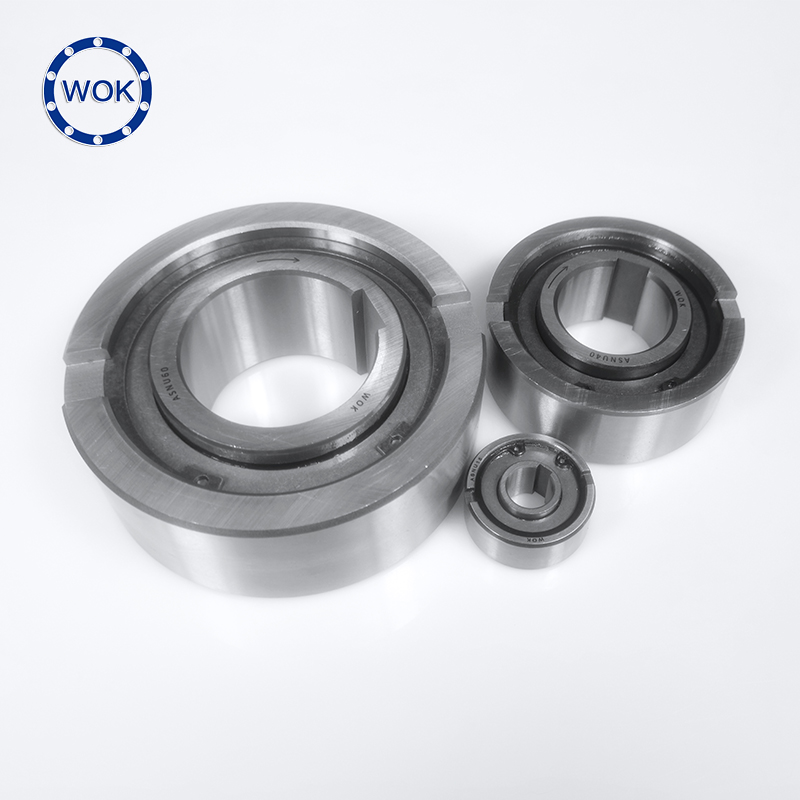

Introduction of ASNU60 one-way clutch

Product ID： 20220830001

Brand Name： WOK

Material： GCr15

Precision Rating： P6

Inner diameter： Φ60mm

Outer diamete： Φ130mm

Place of Origin： Changzhou City, Jiangsu Province

Minimum order quantity： ≥1000

application area： textile machinery;washing machines;scooters;printing machines;electric toys;Food Machinery

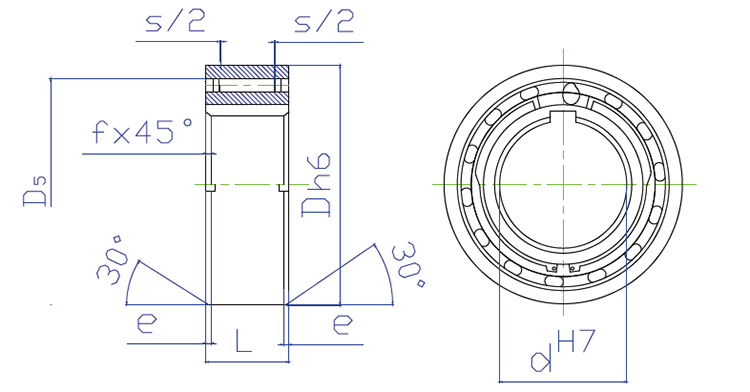

Type ASNU60 is a sprag type freewheel non bearing supported. Bearings are required to support axial and radial loads. Lubrication
and sealing must also be provided by the installation. Nominal outside diameter is the same as a series 63 ball bearing. A typical
arrangement is to install this type alongside a bearing within the same location tolerance as shown on the following page. The
inner race is keyed to the shaft. The outer race has a positive n6 tolerance. to give a press fit in a H7 housing. Additional side
notches in the outer race provide for positive torque transmission. If the housing is to K6 tolerance, use of the notches is not
necessary, but the housing must be strong enough to not expand after assembly. The design can accept an axial misalignment of
inner and outer race of ±S／2. ASNU60,one way clutch,NFS60

Use 2 # lithium grease 30% + Engine oil 70% , Stirring evenly. The grease required temperature range -40 ℃ ～+ 150 ℃. Plus grease once for every month.

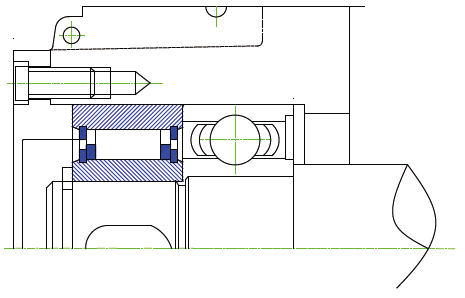

Standard installation of WAU is put the clutch with the bearing side by side,with same position,with the same tolerances.Use splined to couple the inner ring and shaft coupling.The outer sides of the end face of the key for securing the outer wall With the machine to

transmit torque.

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us as below
