WOK one-way bearing product introduction

1.Type WOK is a sprag type freewheel，also named CSK、BB、KK、OW etc．，it intergrated into 6205 series ball bearing.It is bearing supported, delivered grease lubricated and protected against dust of more than 0.3mm.The use of additional“nylos”type seals is recommended especially when the woking temperature exceeds 50℃.

2.Oil bath lubrication is also possible if the original grease is first flushed out using s suitable solvent.

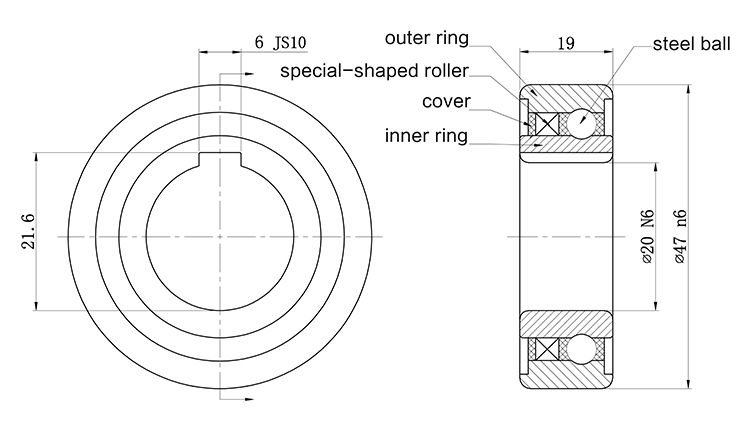

3.Torque transmission is ensured by a press fit assembly into a rigid outer housing with N6 tolerance. and onto a shaft with n6 tolerance. The initial bearing radial clearance is set at C5,and is reduced if using the press fit as specified.

4.The sealing in the both side of inner race or outer race is assembled into the inner race by a taper. So it improved the hermetic sealing and fastness, togther raised the work efficiency.

5.If not fit assembly, giving a WOK…PP series C3 bearing clearance will be necessary.

6.Operating temperature range;-40℃ to+100℃.peaks up to+120℃ are acceptable for short periods.

Skills requirement:

1. The clutch disengages and rotates smoothly without blocking;
