DLK94-Z63

DLK94-Z63 Product Description

1. Use high lubricating grease fillers internally and seal them properly;

2. The parts must be cleaned and cleaned before assembly, without burrs, flash edges, oxide skin, rust, chips, oil stains, colorants, and dust;

3. The rated torque of the one-way clutch is 50N. m, and the maximum torque is greater than 80N. m. It can rotate flexibly when leaving, with more than 300000 clutch times;

4. When the one-way clutch slips, the ball must work. At this time, the concentricity of the inner and outer rings remains within 0.035. When the one-way clutch transfers torque, the ratchet operates. At this time, the concentricity of the inner and outer rings is within 0.045.

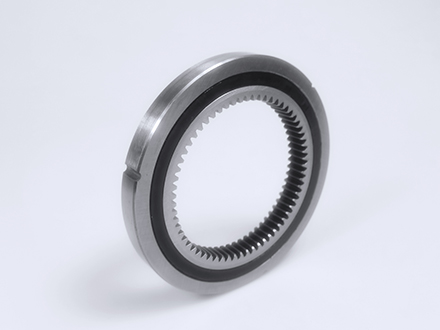

DLK94-Z63 Electric Bicycle Inner Rotor Motor Clutch

This one-way clutch is mainly used for electric bicycles equipped with an inner rotor motor, and is independently developed and produced by our company. The use of this clutch rotor has a better dynamic balance effect, improves the performance of electric bicycle motors, and has advantages such as long service life, high temperature resistance, low noise, and more stable performance.
