DLK98-Z54-BF

8FUN SYXD01F-0202-D-WOK

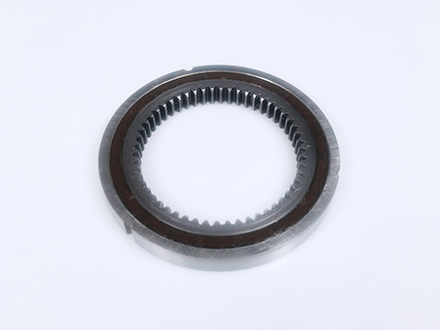

DLK98-Z54-BF Product Description

Technical parameter requirements:

1. Use high-temperature lubricating grease fillers internally and seal them properly. The working temperature of the lubricating grease is -20 ℃ to 150 ℃.

2. Bearing clearance: C3-C5, bearing vibration level: Z2 group.

3. The parts must be cleaned and cleaned before assembly, and it is strictly prohibited to strike the inner and outer rings.

4. The rated torque of the one-way clutch is 50N. m, with a maximum torque greater than 80N. m and a clutch frequency greater than 300000 times.

5. From the direction of view A, the outer ring does not move, while the inner gear ring rotates in the direction of the rotation arrow shown in the figure.
